Description

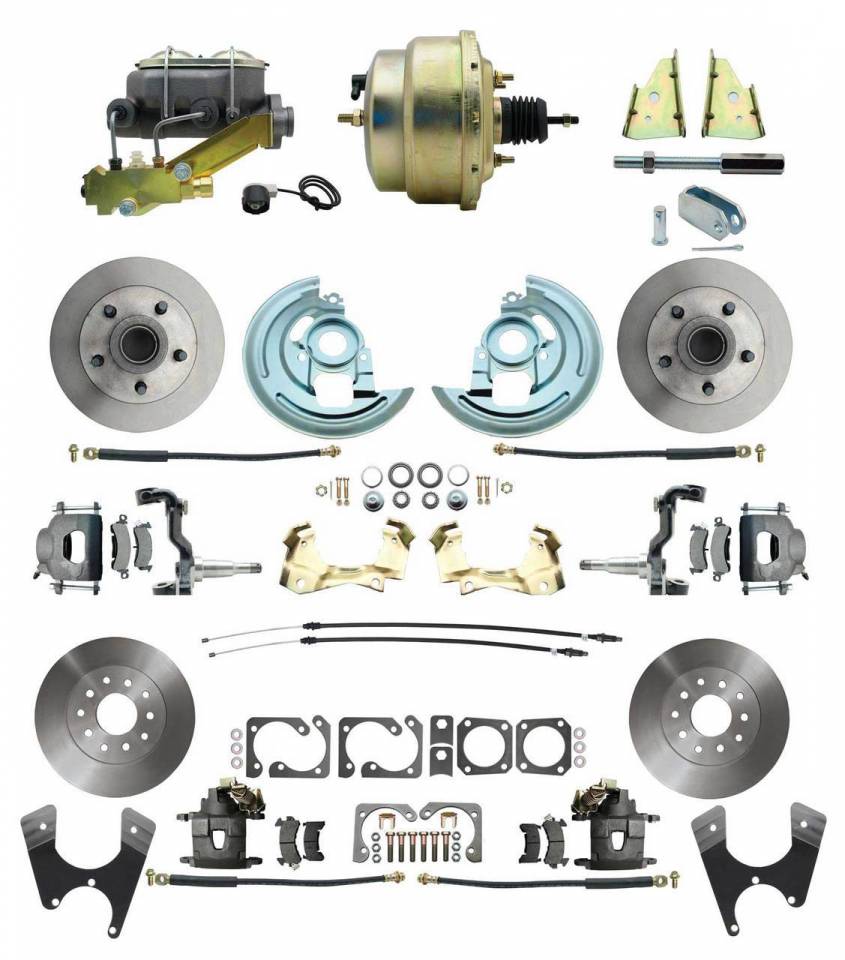

1964-1972 GM A Body ( Chevelle, GTO, Cutlass) Front Disc Brake Kit includes:
- Stock Height spindles

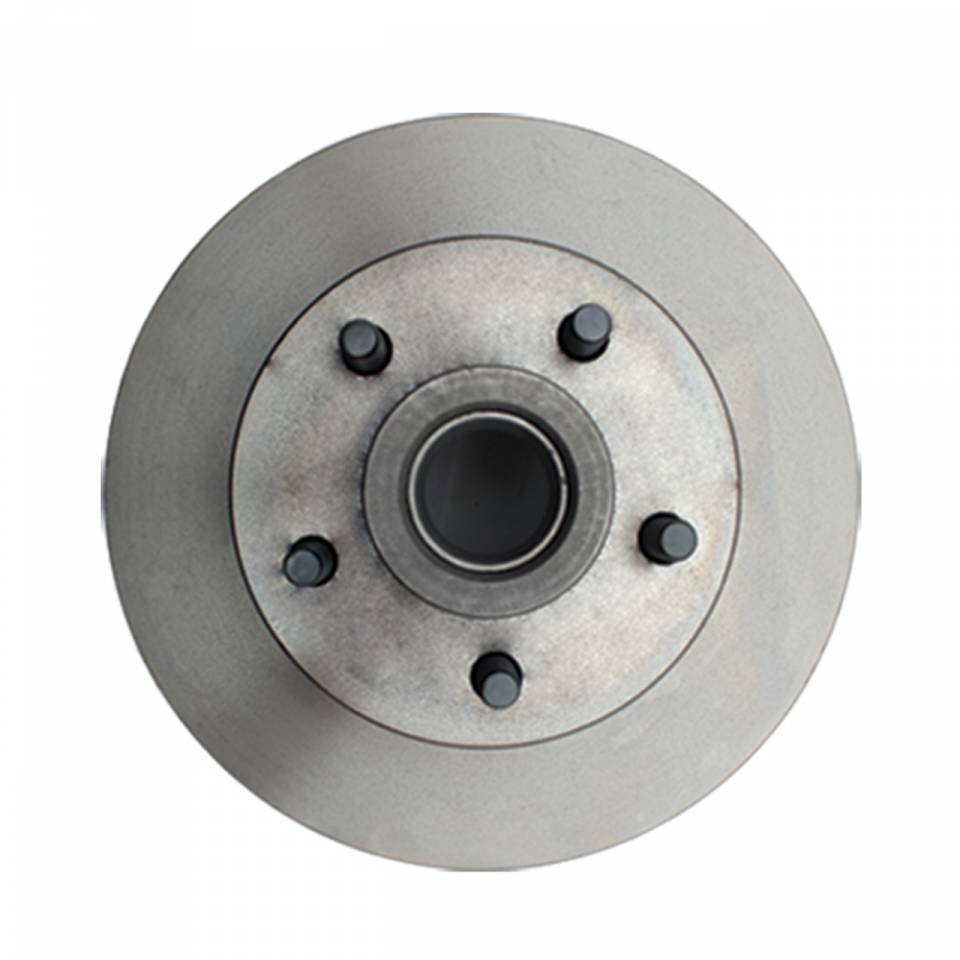

- Front Vented 11" rotors 5"x4.75" w/ 7/16" studs
- Dust caps
- Inner & outer bearings, seals, & mounting hardware
- Front caliper brackets
- Backing Plates

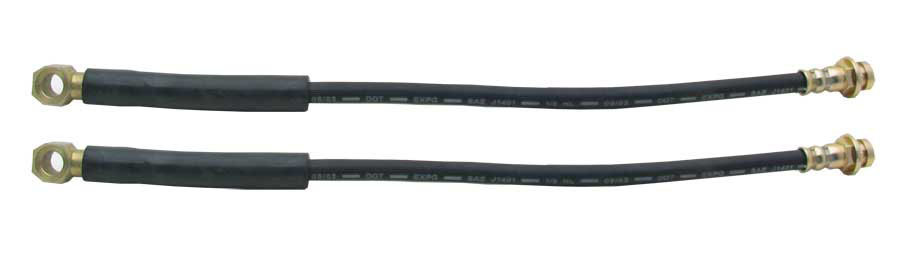

- Front rubber brake hoses

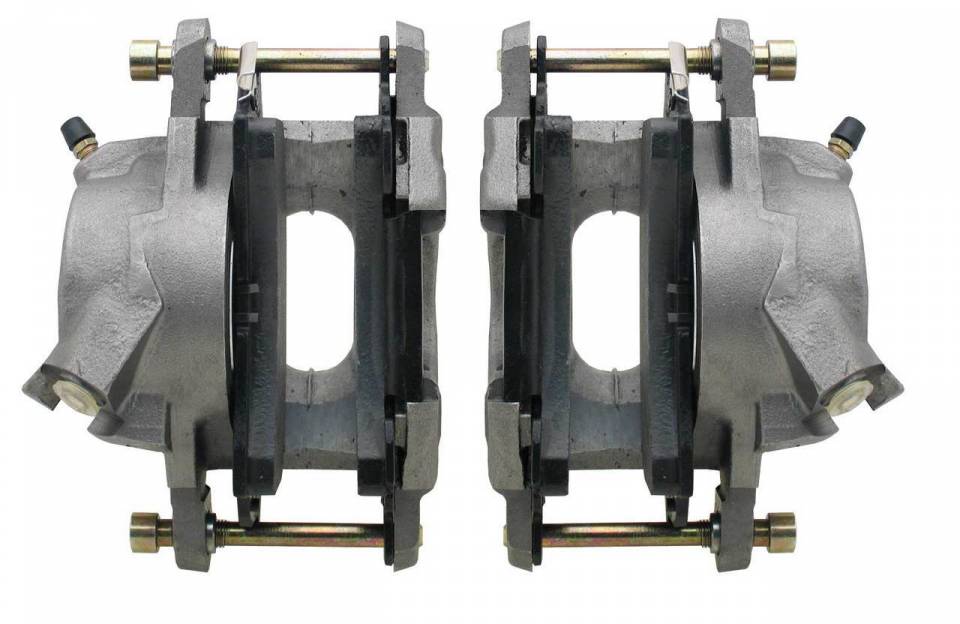

- Large GM single piston calipers pre-loaded with pads
Must use 15" or larger rims.
Complete Rear Disc Brake Conversion Kit Includes:
- Rear 11" Vented GM Rotors Multi Pattern
- Fits 5x4.75" w/ 7/16 Studs & 5x4.5" w/ 1/2 Studs
- Large GM Large Bore Single Piston Calipers w/ Self Adjusting E-Brake (1979 Cadillac El Dorado)
- D54 Pads Included
- Caliper Brackets & Spacers
- Bracket Hardware
- Rubber Brake Hoses Hoses & Clips
- Emergency Brake Cables
Tech Notes:
- Does not fit S-10 Chasis or truck frames
- Maximum diameter of 6.11" to fit rotor hat.
- .050x45 Degree Chamfer
- 2.786" max register axle
- Does not Fit 14" Rims Must use 15" or larger
- When installing rear disc brake kit a disc/disc proportioning valve with a 1-1/8" bore master cylinder will be needed.
1964-1972 GM A Body (Chevelle, GTO, Skylark)

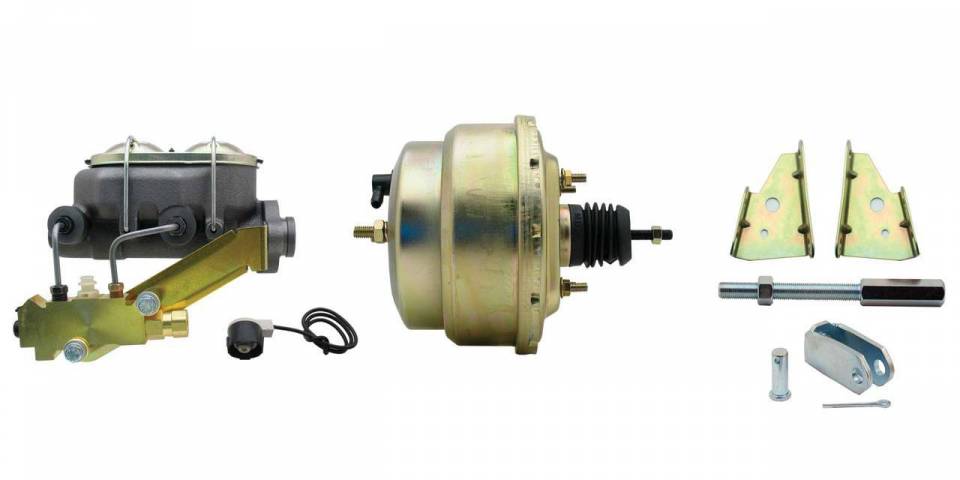

- 8" Dual Zinc Power Brake Booster
- Cast Iron Master Cylinder
- Disc/ Disc Brass Proportioning Valve
- Left Mount Proportioning Valve Kit (2) 3/8"-24 For Front Brakes & (1) 9/16"-18 For Rear Brakes
- Valve bracket, lines, & brake light warning switch, mounting hardware
- Angle firewall brackets
- Pedal rod extension & clevis
This will ship UPS ground,
