SKU: DBK1012S DBK1012S - GM F, X Body 10/12 Bolt Pattern Standard Rear Disc Brake Kit with E-Brake Staggered Shocks


DBK1012S  -  GM F, X Body 10/12 Bolt Pattern Standard Rear Disc Brake Kit with E-Brake Staggered Shocks
Purchase DBK1012S - GM F, X Body 10/12 Bolt Pattern Standard Rear Disc Brake Kit with E-Brake Staggered Shocks
  • SKU: DBK1012S DBK1012S - GM F, X Body 10/12 Bolt Pattern Standard Rear Disc Brake Kit with E-Brake Staggered Shocks

  • $426.00

  • Manufacturer: MBM
  • Part #: DBK1012S
  • Rating:
    Not yet rated

Description


The DBK1012S provides an easy to install, bolt on solution for upgrading your Cars 10 or 12 bolt rear-end to disc brake performance.This kit will dramatically improve your stopping performance from drums to 11" disc rotors!

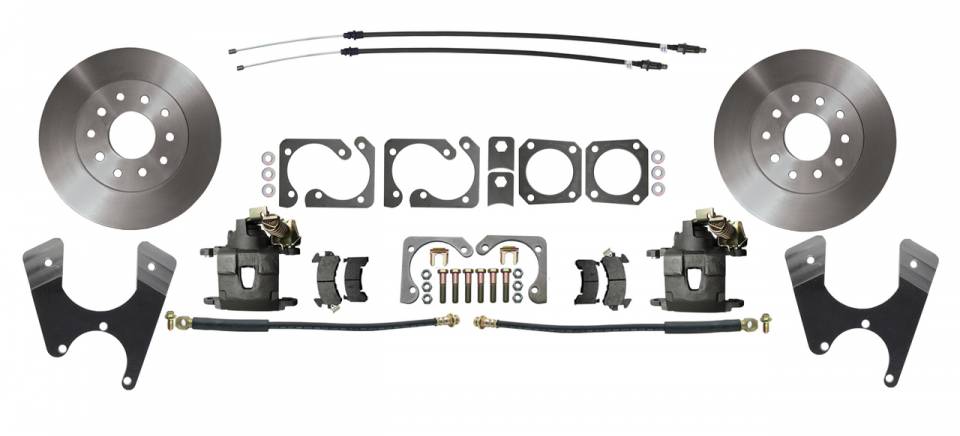

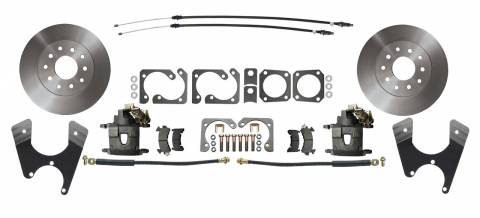

Complete Rear Disc Kit Includes:

     Multi-pattern 11" GM Rotors

    Loaded Large GM Cast Iron Calipers with built in emergency brake

    Caliper Brackets & Spacers

    Bracket Hardware, Rubber Hoses & Brackets, Emergency Brake Cables

    Works on C-Clip or non C-Clip rear ends.

    Each rotor is drilled for GM 5 x 4.75'' w/ 7/16'' stud bolt patterns.


Will not fit Moser rear ends.


 Maximum diameter of 6.11" to fit rotor hat. .050x45 Degree Chamfer. 2.786" max register axle.

 Fits 15" or larger rims


Does not fit the S10 Chassis or any other truck. This kit is designed only  for 1968-69 F-body cars & 68-74 X body.


This kit works for:

1968-69 F-Bodies: Camaro & Firebird

1968-74 X- Bodies: Nova


Specification:

  • Part Number: DBK1012S
  • UPC: 635648180588
  • Position: Rear
  • Application Type: Disc/Disc
  • Disc Brak Kit Type: Manual
  • Minimum Order: 1
  • Application Specific: Yes
  • Application Flags: Does not fit S-10 Chasis or truck frames or 14" rims. Maximum diameter of 6.11" to fit rotor hat. .050x45 Degree Chamfer. 2.786" max register axle.
  • Country of Origin: China
  • Safety Material: None
  • Front Rotor Included: No
  • Rear Rotor Included: Yes
  • Bolt Pattern: 5 x4.75
  • Rotor Construction: Vented
  • Rotor Dimension: 11"
  • Rotor Thickness: 1"
  • Front Caliper Included: No
  • Rear Caliper Included: Yes
  • Rear Caliper Material: Cast Iron
  • Rear Caliper Finish: Natural
  • Rear Caliper Piston: Single Large Bore
  • Brake Pad Replacement: MKD54
  • Parking Brake Provision: Yes
  • Parking Brake Cables Included: Yes
  • Parking Brake Cable Length: (1) 36.22" (1) 39.76"
  • Minimum required wheel diameter: 15"
  • Front Spindles Included: No
  • Brake Booster Included: No
  • Master Cylinder Included: No
  • Brake Hoses Included: Yes
  • Brake Hose Material: Stainless Steel
  • Master Cylinder Included: N/A
  • Brake Booster Included: N/A
  • Application Notes
  • Box Size: No
  • Weight: No
  • Brake Booster Included: Yes
  • Master Cylinder Included: Stainless Steel
  • Brake Hoses Included: N/A
  • Brake Hose Material: N/A
  • Application Notes
  • MKT: MBM's easy to install rear disc brake kit includes everything you need for an easy restoration! Remember that you will need to swap ot your proportioning valve to disc/disc and MBM reccomends a 1"-1/8 large bore master cylinder when adding disc brake
  • Box Size: 15x15x14
  • Weight: 62
