Product Description

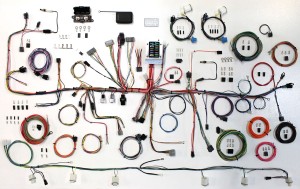

This American AutoWire complete wiring kit
for a 1987-1989 Ford Mustang Classic Update Kit includes everything you’ll
need to replace most of the wiring in your Mustang. American AutoWire part
510547 includes a new factory steering column
connectors installed and ready to plug into your factory switches.
Carolina Classic Trucks is a preferred authorized dealer of American AutoWire
Wiring Harnessess and Wiring Products.
1987-1989 Ford Mustang Update Series Wiring Harness Kit
Classic Update Kits give you one of the most complete kits on the market to "Make Wiring THAT Easy". They are designed for specific year, make, and model configurations. The 1987-89 Ford Mustang Kit is no exception. The kit boasts 12 features making it the most complete system of its type in the industry including:
Compact fusebox with aluminum mounting plate that can be used for early and late model mounting locations.
- Includes a 175 amp Mega Fuse for main system protection.
- Dash harness comes with all factory steering column connectors installed and ready to plug into your factory switches.
- New headlight and hazard switch connectors come pre-installed on harness. Wiring with new terminals for fog lights or rear defrost switches included in the dash harness.
- New door switches and connectors for courtesy lighting.
- Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. Supports most aftermarket gauge packages.
- Rear body harness comes complete with new lamp sockets.
- Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, and electric speedometer (if needed). A heavy gauge alternator feed and fusible link are also included for any typical high output 1 wire or internally regulated alternator.
- Front lighting includes extra long leads that can be routed for stock or custom appearances.
- New headlamp, directional, and marker lamp sockets come installed on the front light kit. Includes new washer pump connector and wiring.
- Supports power windows and locks with the use of the factory door harnesses.
- Includes heat and A/C wiring with new blower switch and blower resistor connectors installed.
- Provides ignition feeds for aftermarket ignitions and fuel injection ECU’s.
- Add on kits for connecting the factory gauge cluster, console power mirror switch, and power seats will be available in the near future.
***Does not include convertible top wiring.***
***Please Note: Harness is not engine specific as it does not have ECU-to-Engine Wiring such as injector harness and mass air.***
